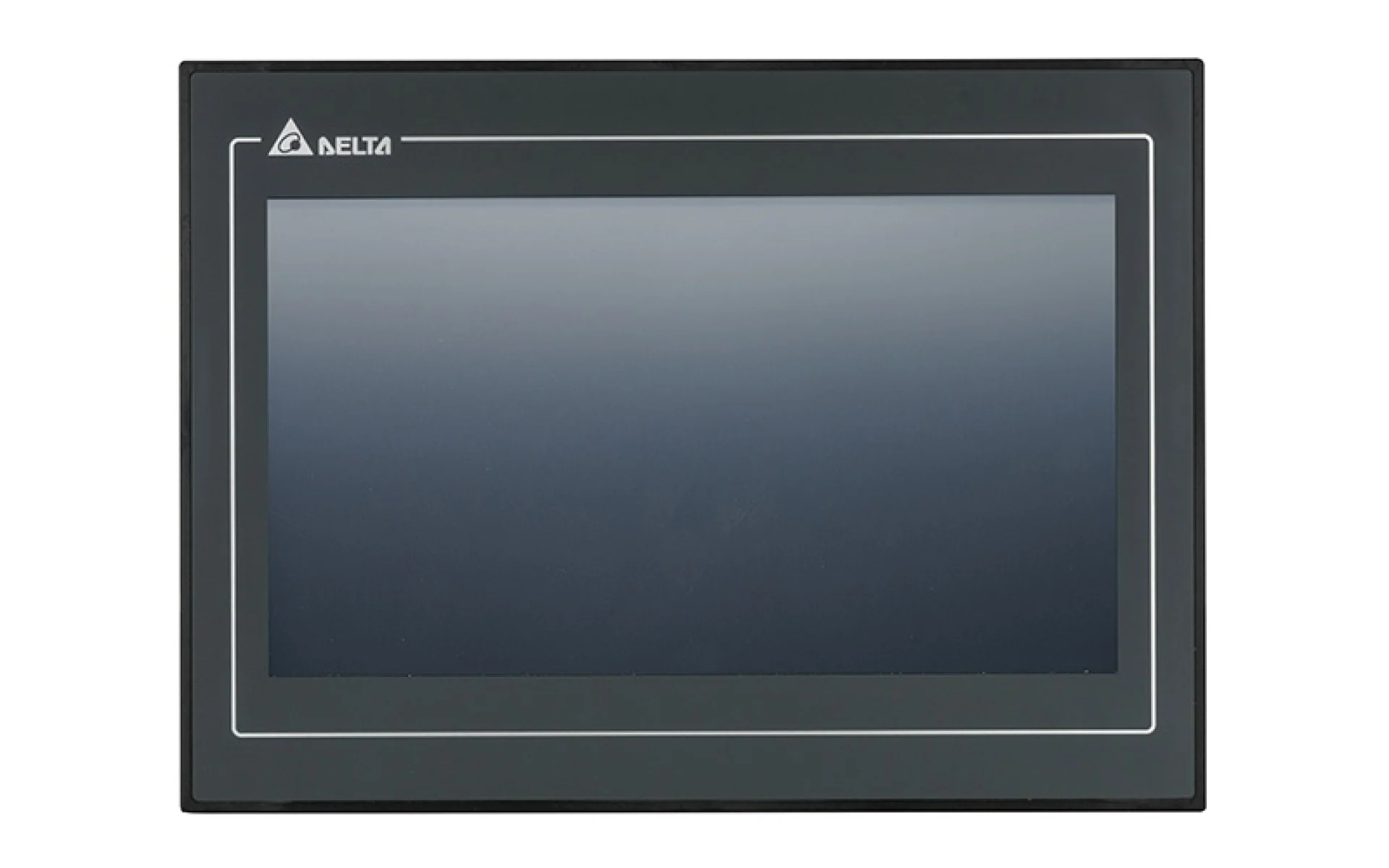

DOP-112MX DELTA HMI
- 12″ (1024 x 768 pixels) TFT LCD 65536 colors
- CE-certified aluminum enclosure
- 2 sets of COM ports, support RS232 / RS422 / RS485
- Supports USB Host, direct connection to USB disk, printer and mouse
- Supports SD card
- Supports 2 Ethernet ports
- Supports audio output (MP3, Wav files)
- Supports video format: MPEG1, MPEG2, WMV
- Touch screen complies with IP65
- Supports horizontal / vertical display
- PC editing software, DOPSoft is compatible with operating systems: Windows XP, Windows Vista, Windows 7
Özellikler
Modeller ve Seçenekler
| DOP-103BQ | DOP-100 HMI – 4.3”, 480×272 Piksel, 2 Seri Port |
| DOP-103WQ | DOP-100 HMI – 4.3”, 480×272 Piksel, 2 Seri Port, Ethernet, VNC Server/eServer |
| DOP-107EG | DOP-100 İnce Kasa HMI – 7.0″, 800×600 Piksel, 3 Seri Port, Ethernet, VNC Server/eServer, SD kart, Ses çıkışı |
| DOP-107BV | DOP-100 HMI – 7.0”, 800×480 Piksel, 2 Seri Port |
| DOP-107CV | DOP-100 HMI – 7.0”, 800×480 Piksel, 3 Seri Port |
| DOP-107EV | DOP-100 HMI – 7.0”, 800×480 Piksel, 3 Seri Port, Ethernet, VNC Server/eServer |
| DOP-107WV | DOP-100 İnce Kasa HMI – 7.0″, 800×480 Piksel, 3 Seri Port, Ethernet, VNC Server/eServer |
| DOP-110CS | DOP-100 HMI – 10.1”, 1024×600 Piksel, 3 Seri Port |
| DOP-110IS | DOP-100 HMI – 10.1”, 1024×600 Piksel, 3 Seri Port, Ethernet, VNC Server/eServer, SD kart, Ses çıkışı |
| DOP-110WS | DOP-100 İnce Kasa HMI – 10.1”, 1024×600 Piksel, 3 Seri Port, Ethernet, VNC Server/eServer |
| DOP-112WX | DOP-100 İnce Kasa HMI – 12.1”, 1024×768 Piksel, 4 Seri Port, 2 Ethernet, VNC Server/eServer, SD kart, Ses çıkışı, OPC UA |
| DOP-112MX | DOP-100 İnce Kasa HMI – 12.1”, 1024×768 Piksel, 4 Seri Port, 2 Ethernet, VNC Server/eServer, SD kart, Ses çıkışı 2 Analog Kamera Girişi, 1 VGA girişi, OPC UA |
| DOP-115WX | DOP-100 İnce Kasa HMI – 15.0”, 1024×768 Piksel, 4 Seri Port, 2 Ethernet, VNC Server/eServer, SD kart, Ses çıkışı, OPC UA |
| DOP-115MX | DOP-100 İnce Kasa HMI – 15.0”, 1024×768 Piksel, 4 Seri Port, 2 Ethernet, VNC Server/eServer, SD kart, Ses çıkışı 2 Analog Kamera Girişi, 1 VGA girişi, OPC UA |
