DOP-110IS

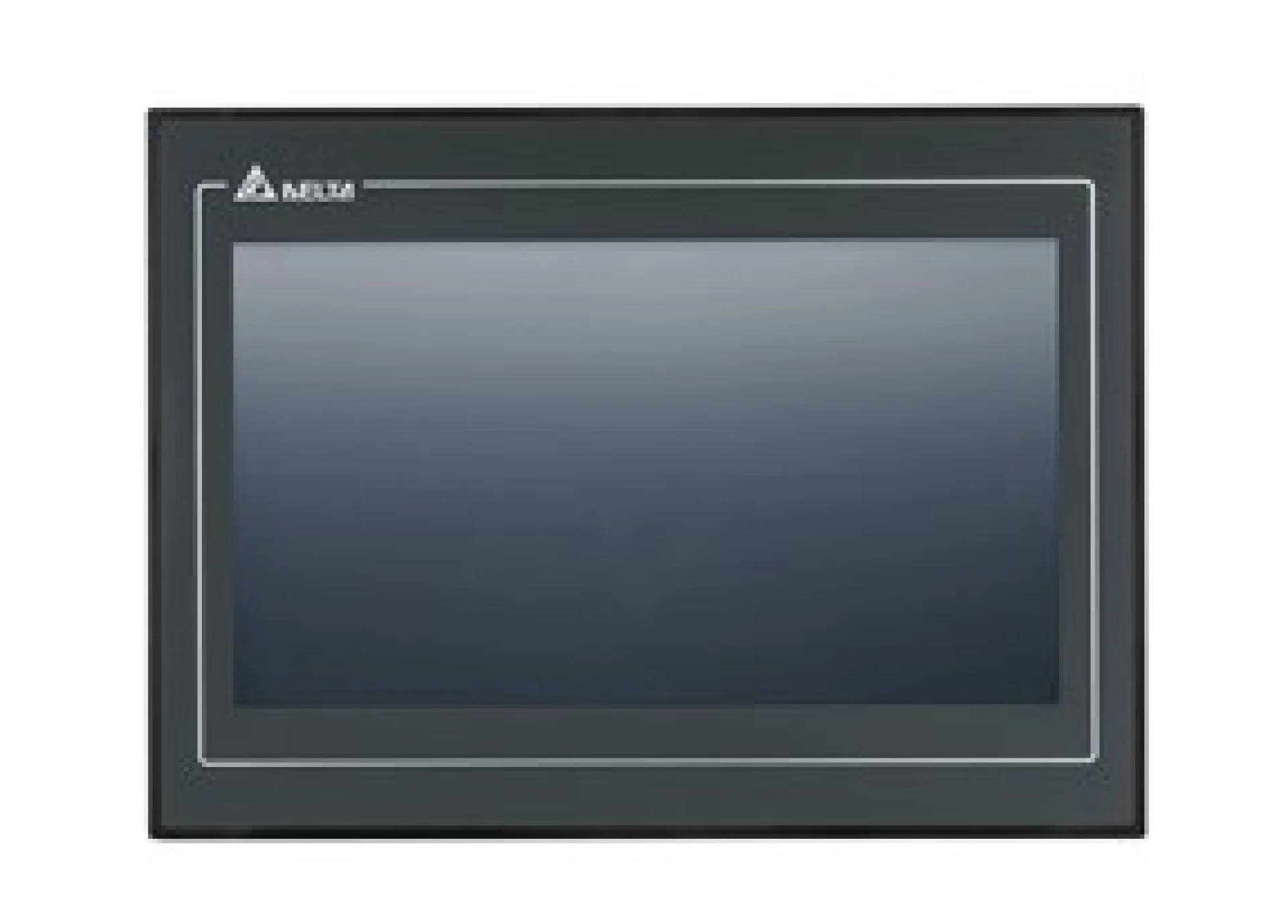

DOP-110IS DELTA HMI

The Standard HMI is equipped with 2+ COM ports to meet most customer requirements. The Standard Ethernet Type offers an Ethernet port for a fast connection with other equipment.

10.1″(1024 x 600 pixels) TFT LCD 65536 colors
Cortex-A8 800 MHz CPU
256 MB RAM
256 MB ROM
3 sets of COM ports / 1 Ethernet port
USB Host
USB Client
Supports SD card
CE / UL certified
Operation Temperature: 0℃ ~ 50℃
Storage Temperature: -20℃ ~ 60℃
Pressing times: > 10,000K times

Özellikler

Modeller ve Seçenekler

DOP-103BQ	DOP-100 HMI – 4.3”, 480×272 Piksel, 2 Seri Port
DOP-103WQ	DOP-100 HMI – 4.3”, 480×272 Piksel, 2 Seri Port, Ethernet, VNC Server/eServer
DOP-107EG	DOP-100 İnce Kasa HMI – 7.0″, 800×600 Piksel, 3 Seri Port, Ethernet, VNC Server/eServer, SD kart, Ses çıkışı
DOP-107BV	DOP-100 HMI – 7.0”, 800×480 Piksel, 2 Seri Port
DOP-107CV	DOP-100 HMI – 7.0”, 800×480 Piksel, 3 Seri Port
DOP-107EV	DOP-100 HMI – 7.0”, 800×480 Piksel, 3 Seri Port, Ethernet, VNC Server/eServer
DOP-107WV	DOP-100 İnce Kasa HMI – 7.0″, 800×480 Piksel, 3 Seri Port, Ethernet, VNC Server/eServer
DOP-110CS	DOP-100 HMI – 10.1”, 1024×600 Piksel, 3 Seri Port
DOP-110IS	DOP-100 HMI – 10.1”, 1024×600 Piksel, 3 Seri Port, Ethernet, VNC Server/eServer, SD kart, Ses çıkışı
DOP-110WS	DOP-100 İnce Kasa HMI – 10.1”, 1024×600 Piksel, 3 Seri Port, Ethernet, VNC Server/eServer
DOP-112WX	DOP-100 İnce Kasa HMI – 12.1”, 1024×768 Piksel, 4 Seri Port, 2 Ethernet, VNC Server/eServer, SD kart, Ses çıkışı, OPC UA
DOP-112MX	DOP-100 İnce Kasa HMI – 12.1”, 1024×768 Piksel, 4 Seri Port, 2 Ethernet, VNC Server/eServer, SD kart, Ses çıkışı 2 Analog Kamera Girişi, 1 VGA girişi, OPC UA
DOP-115WX	DOP-100 İnce Kasa HMI – 15.0”, 1024×768 Piksel, 4 Seri Port, 2 Ethernet, VNC Server/eServer, SD kart, Ses çıkışı, OPC UA
DOP-115MX	DOP-100 İnce Kasa HMI – 15.0”, 1024×768 Piksel, 4 Seri Port, 2 Ethernet, VNC Server/eServer, SD kart, Ses çıkışı 2 Analog Kamera Girişi, 1 VGA girişi, OPC UA
